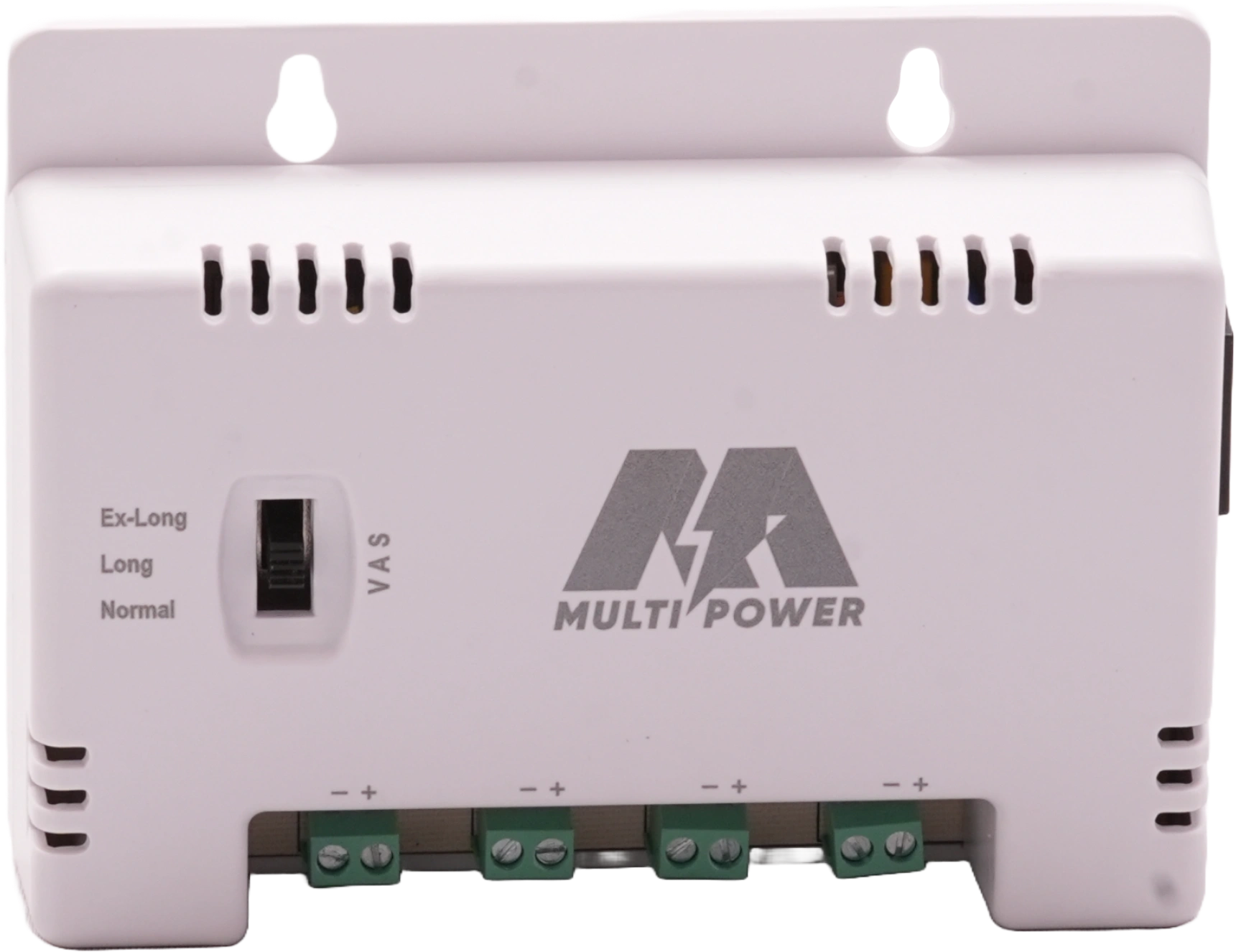

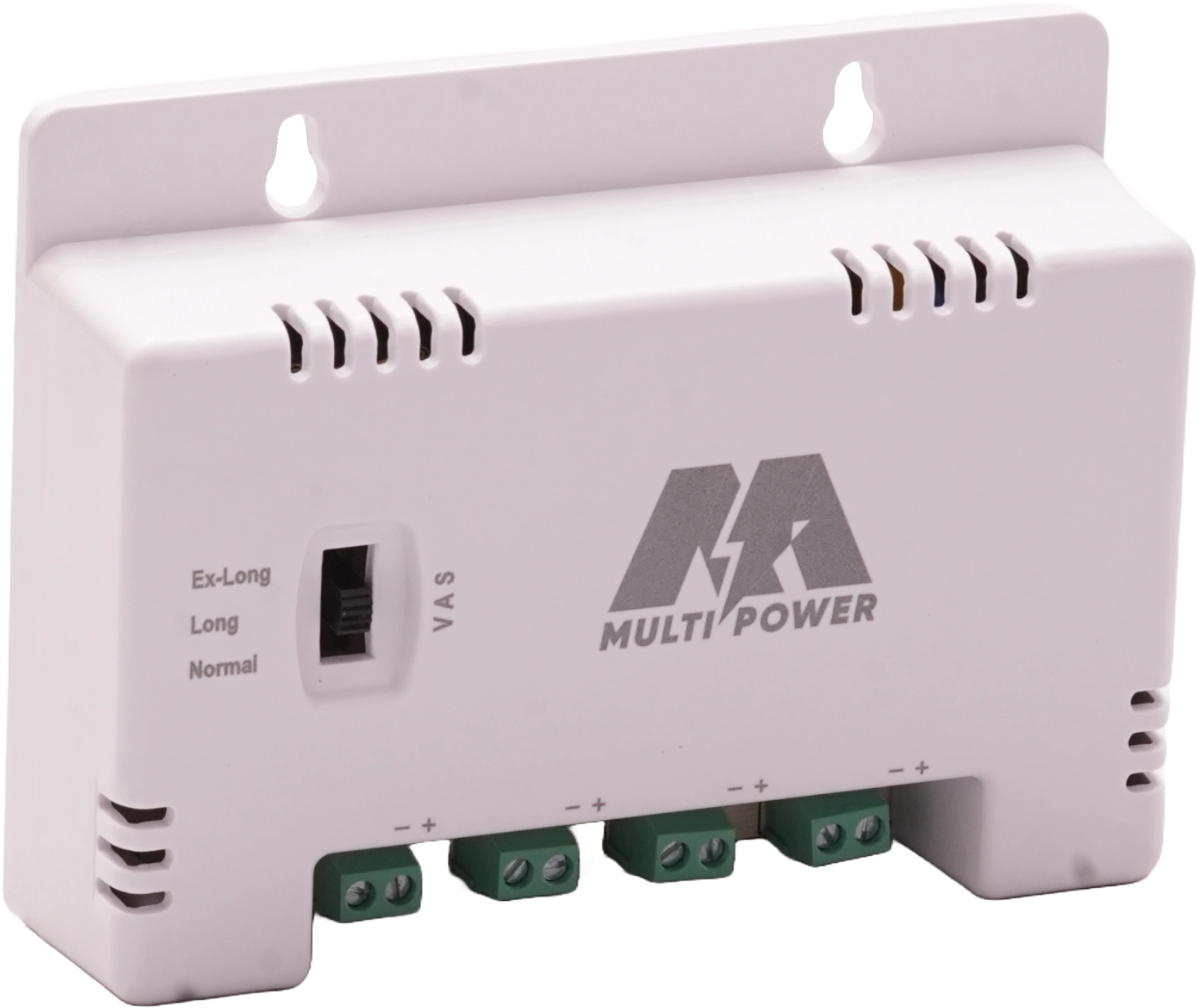

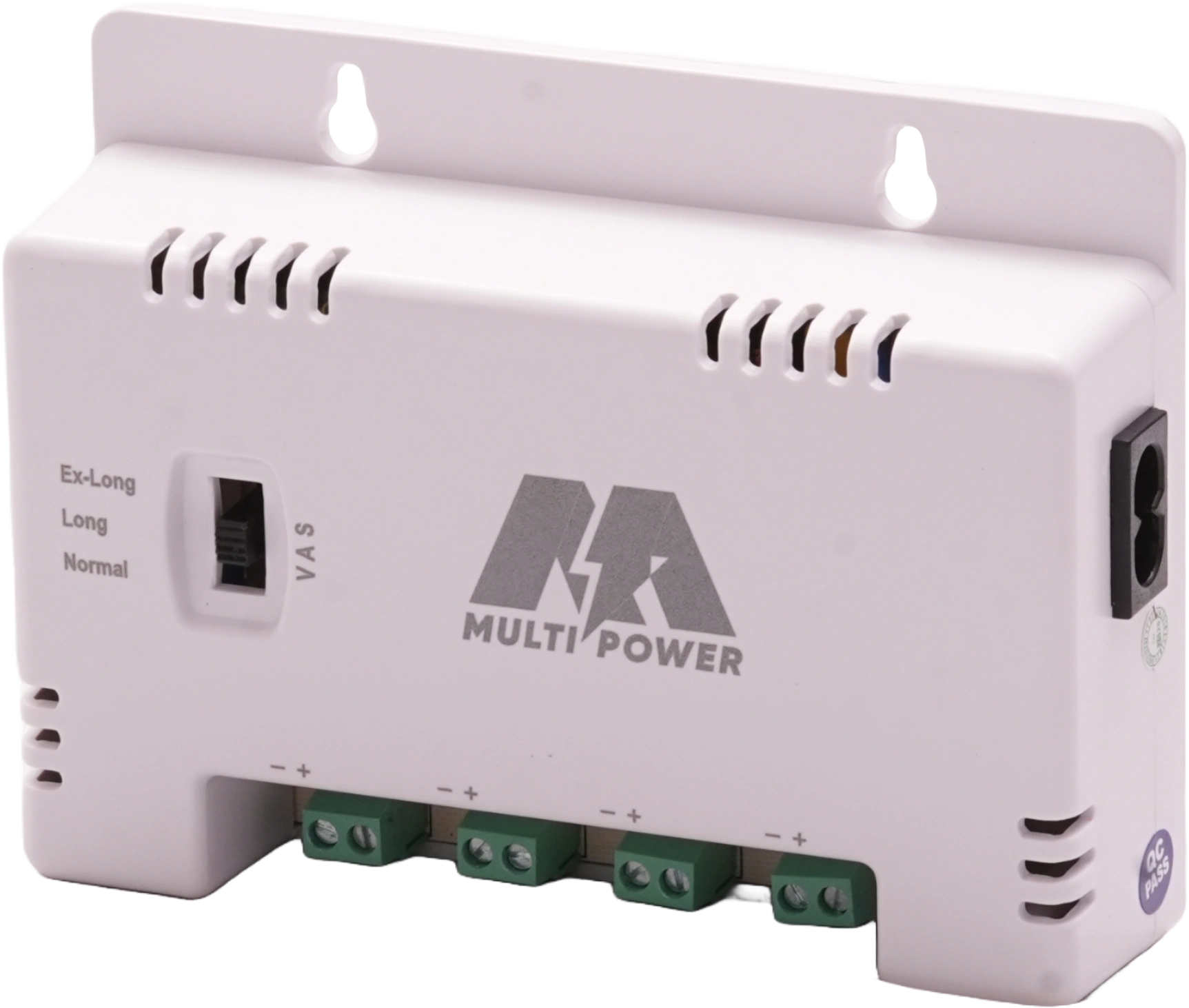

MP-PS-04-S
Multipower 4 Channel SMPS
*AC Input Voltage – 150~265VAC
*DC Output voltage – 12~15VDC
*Rated Power – 75W
*Ripple & Noise (max.) – 140mV(max)
*Voltage Adj. Range – 12~15V
*Device – Primary-Side Regulation
*Device(frequency) – 132KHz
*VDS Voltage – 616V(max)
*Line Regulations – ±1%
*Load Regulations – ±5%
*SCP – Output short-circuit protection
*OPP, OCP – Output overload/over-current protection
*OVP – Output overvoltage protection, auto-restart or latching
*line UV – Line brown-in/out protection
*OV – Line overvoltage shutdown extends line surge withstand
*OTP – Accurate thermal shutdown, hysteretic or latching
*Efficiency(Typ.) – 83%
*Frequency Range – 47~63HZ
*Storage Temperature – 0-50°C
