MP-PS-1203-A

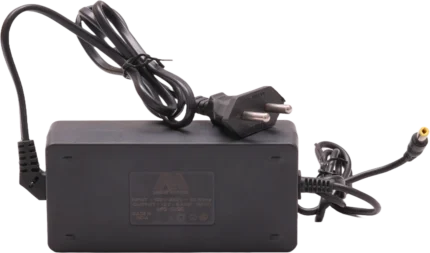

Multipower 12V-2Amp Adaptor *VAC Voltage - 150~265VAC *Output voltage - 12VDC *Rated Power - 24W *Ripple & Noise (max.) - 70mV(max) *Voltage Adj. Range - NA *Device - Primary-Side Regulation CV/CC Switcher for Adapters and Chargers *Device(frequency) - 85KHz *VDS Voltage - 600V(max) *Line Regulations - ±1% *Load Regulations - ±5% *SCP - Output short-circuit protection *ARP - Auto-restart protection reduces power delivered by >90% for output short-circuit and control loop faults (open and shorted components) *ON/OFF control - ON/OFF control provides constant efficiency down to very light loads – ideal for CEC regulations *line UV - Line brown-in/out protection *OV - Line overvoltage shutdown extends line surge withstand *OTP - Accurate thermal shutdown, hysteretic or latching *Efficiency(Typ.) - 80% *Frequency Range - 47~63HZ *Storage Temperature - 0-50°C
