MP-NVR364
Multipower 5MP/8MP 64 Channel NVR 8SATA
*Compression - H.265+/H.265/H.264 Compression Format
*Support Camera - 64Ch IPC Input (16MP/D1+36Ch Preview & 8Ch Playback
*Network Bandwidth - Optimize Bandwidth Incoming Upto 360MBPS
*Protocol - RTSP, P6S (Private Protocol), ONVIF
*AI Function - 1CH Face Detection, Target Count, E-Fence, Line Crossing etc.
*IPC Adding Method - Automatically & Manual in Lan (Diffrent Subnet Adding)
*ARO Function - Different Camera Location and NVR Central Monitoring
*Ethernet - 2 RJ-45 Port (100/1000 MBPS)
*Video Output - 1 VGA/2 HDMI Simultaneous View
*Audio Output - 1pc-3.5mm TRS Port
*USB Port - 2 USB 2.0
*Storage - 8 SATA (Max 8 TB EACH)

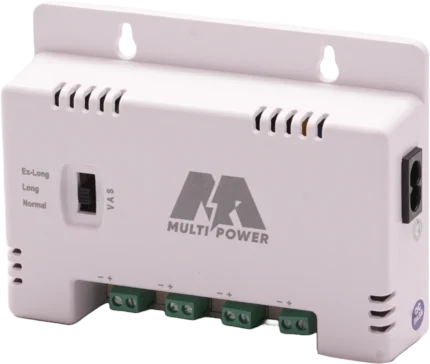

MP-PS-04-S
Multipower 4 Channel SMPS
*AC Input Voltage - 150~265VAC
*DC Output voltage - 12~15VDC
*Rated Power - 75W
*Ripple & Noise (max.) - 140mV(max)
*Voltage Adj. Range - 12~15V
*Device - Primary-Side Regulation
*Device(frequency) - 132KHz
*VDS Voltage - 616V(max)
*Line Regulations - ±1%
*Load Regulations - ±5%
*SCP - Output short-circuit protection
*OPP, OCP - Output overload/over-current protection
*OVP - Output overvoltage protection, auto-restart or latching
*line UV - Line brown-in/out protection
*OV - Line overvoltage shutdown extends line surge withstand
*OTP - Accurate thermal shutdown, hysteretic or latching
*Efficiency(Typ.) - 83%
*Frequency Range - 47~63HZ
*Storage Temperature - 0-50°C
MP-PS-08-S
Multipower 8 Channel SMPS
*AC Input Voltage - 150~265VAC
*DC Output voltage - 12~15VDC
*Rated Power - 120W
*Ripple & Noise (max.) - 120mV(max)
*Voltage Adj. Range - 12~15V
*Device - Primary-Side Regulation
*Device(frequency) - 132KHz
*VDS Voltage - 575V(max)
*Line Regulations - ±1%
*Load Regulations - ±5%
*SCP - Output short-circuit protection
*OPP, OCP - Output overload/over-current protection
*OVP - Output overvoltage protection, auto-restart or latching
*line UV - Line brown-in/out protection
*OV - Line overvoltage shutdown extends line surge withstand
*OTP - Accurate thermal shutdown, hysteretic or latching
*Efficiency(Typ.) - 83%
*Frequency Range - 47~63HZ
*Storage Temperature - 0-50°C"
MP-PS-1202-A
Multipower 12V-2Amp Adaptor
*VAC Voltage - 150~265VAC
*Output voltage - 12VDC
*Rated Power - 24W
*Ripple & Noise (max.) - 70mV(max)
*Voltage Adj. Range - NA
*Device - Primary-Side Regulation CV/CC Switcher for Adapters and Chargers
*Device(frequency) - 85KHz
*VDS Voltage - 600V(max)
*Line Regulations - ±1%
*Load Regulations - ±5%
*SCP - Output short-circuit protection
*ARP - Auto-restart protection reduces power delivered by >90% for output short-circuit and control loop faults (open and shorted components)
*ON/OFF control - ON/OFF control provides constant efficiency down to very light loads – ideal for CEC regulations
*line UV - Line brown-in/out protection
*OV - Line overvoltage shutdown extends line surge withstand
*OTP - Accurate thermal shutdown, hysteretic or latching
*Efficiency(Typ.) - 80%
*Frequency Range - 47~63HZ
*Storage Temperature - 0-50°C
